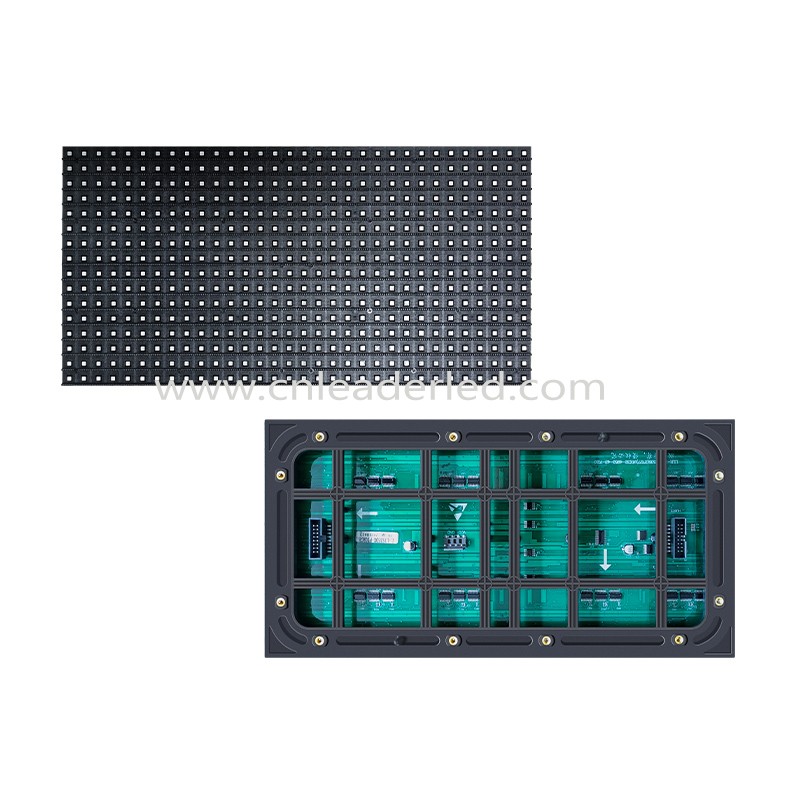

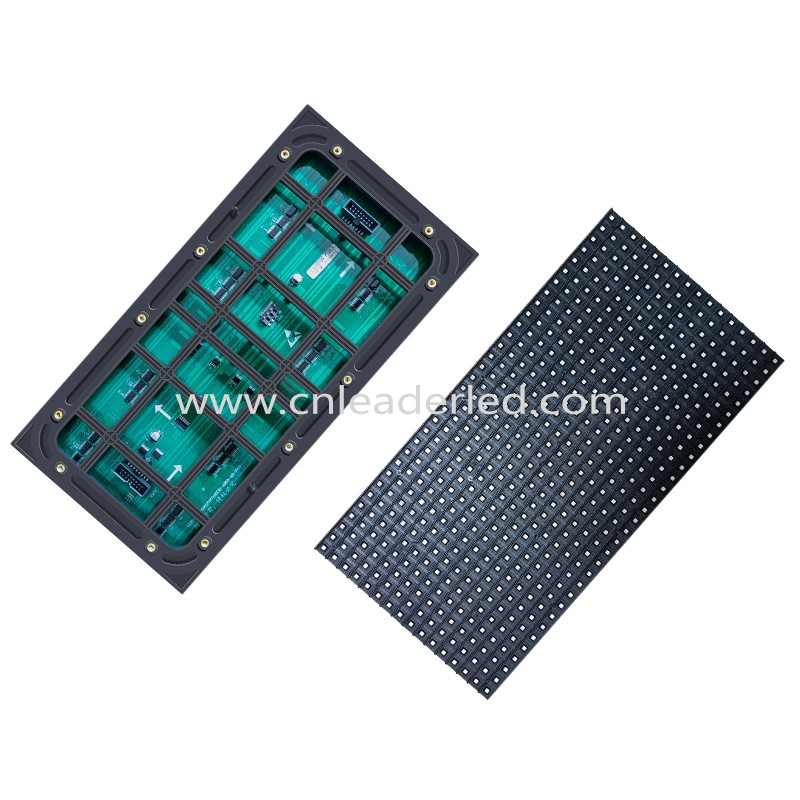

Outdoor waterproof 320x160mm Series Full Color led display screen module
  • P8(320x160)
  • p10 2
  • P10

Outdoor waterproof 320x160mm Series Full Color led display screen module

1> High performance led, life span above 10 years.

2> Support single led and signle point maintainance, cost saving

3> High contrast ratio, above 5000:1, excellent display effect.

4> Anti-fire plastic structures, durable and strong PC material ensure perfect uniformity.

5> Working temperature & Humidity:  -20ºC~65ºC / 10%~90%

6> Multiple installation way, easy to splicing 16:9 ratio, DIY unique shape.
7> Protection level: IP65

8> PWM driving IC, high quality display effect

Application

Used in outdoor advertising, airport, transportation center, road guide, metro station, pole led screen, portable advertising, truck moving advertising system, commercial advertising led sign, retail shop, shopping mall semi-outdoor and full outdoor usage.

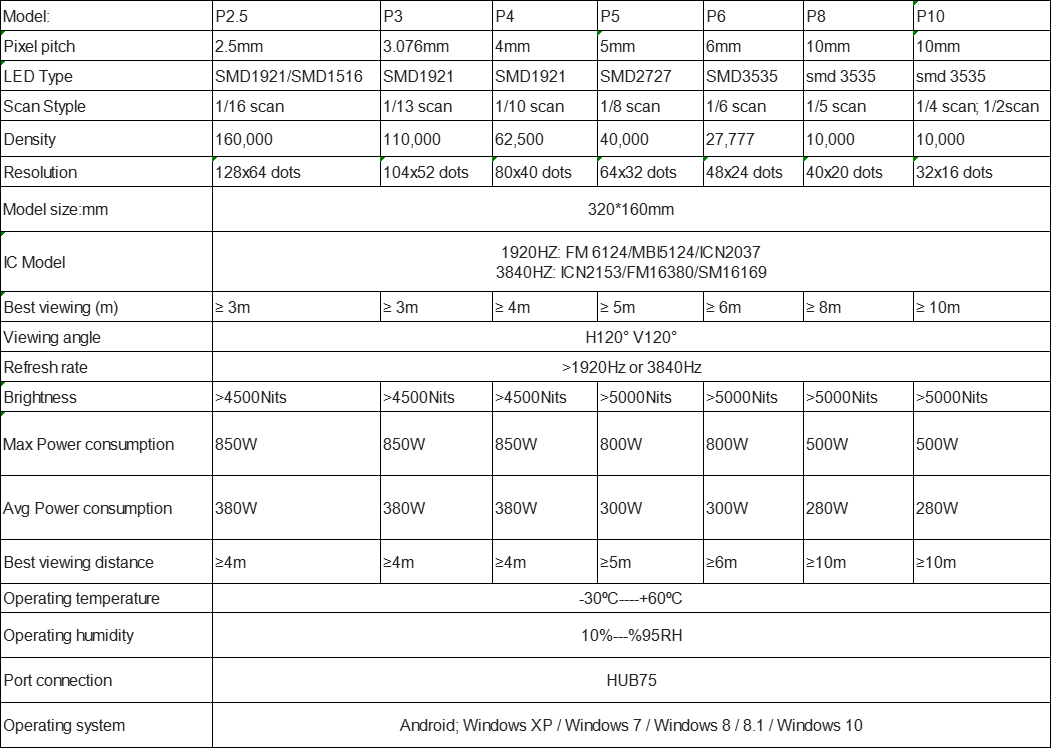

LED Module Parameters

Pixel Pitch: P2.5mm, P3mm, P4mm, P5mm,P6mm,P8mm,P10mm
Module Size: 320*160mm
Brightness: ≥4500nits
Refresh Rate: ≥ 3840Hz | 1920HZ
Port: HUB75B
